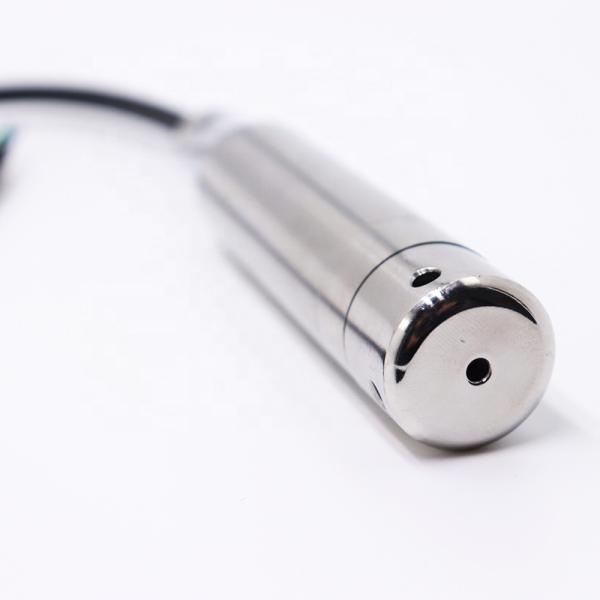

4-20mA 0.5-4.5V Submersible Water Level Sensor With Rs485 Modbus

Application : Rainwater, Drinking water,Wastewater, Car washes, Seawater

Housing material : 304SS, 316L

Port : Shanghai, Ningbo, Shenzhen, Guangzhou

Brand Name : WNK

Model Number : wnk8010

Certification : CE

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $35.00 - $50.00/Pieces

Payment Terms : T/T,Western Union,,Paypal

Supply Ability : 3000 Set/Sets per Week water level sensor

Delivery Time : 5-8 work days

Packaging Details : Each set into one individual carton, protection with foam. Then into master carton

Warranty : 1 YEAR

Accuracy : 0.2%FS, 0.5%FS,

Power supply : 12~36VDC

Output signal : 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Sensor Contact : 316L

Customized support : OEM, ODM

Pressure range : 0...1~200 metres

Ingress Protection : IP68

Pressure type : Gauge

Grade : Industrial

Working temperature : -40~85 ℃

Contact Now

4-20mA 0.5-4.5V Submersible Water Level Sensor With Rs485 Modbus

Submersible Water Level Sensor With Rs485 Modbus

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

4-20mA 0.5-4.5V Submersible Water Level Sensor With Rs485 Modbus

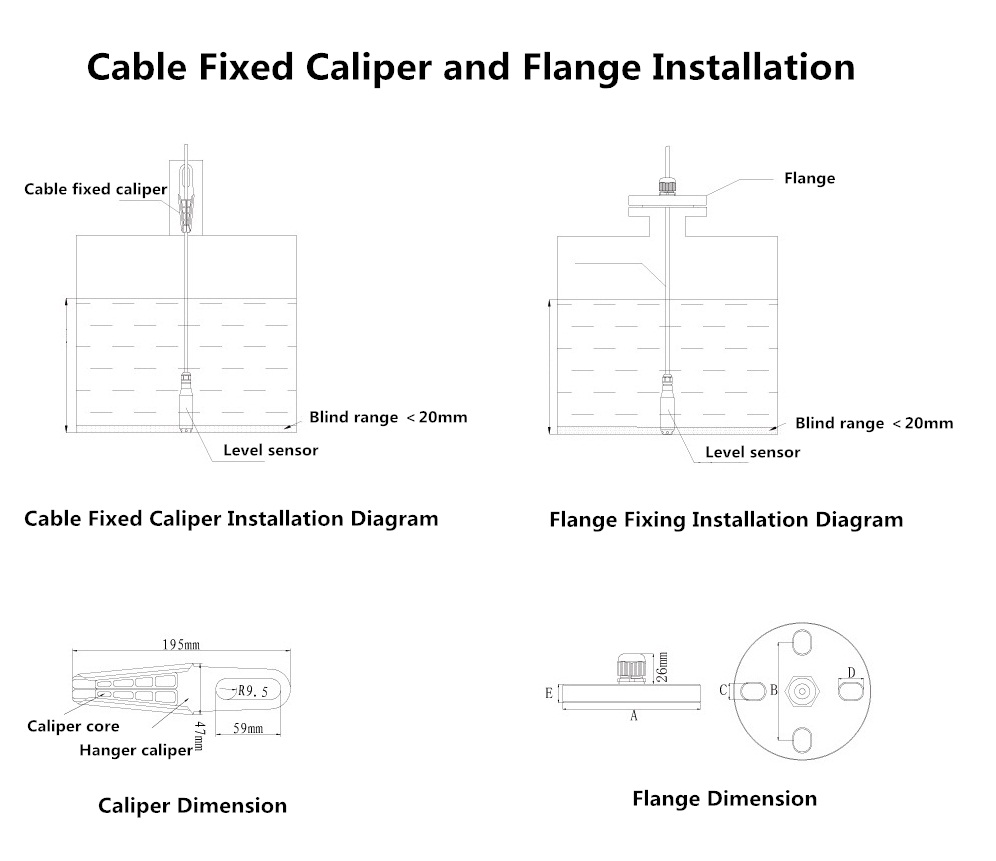

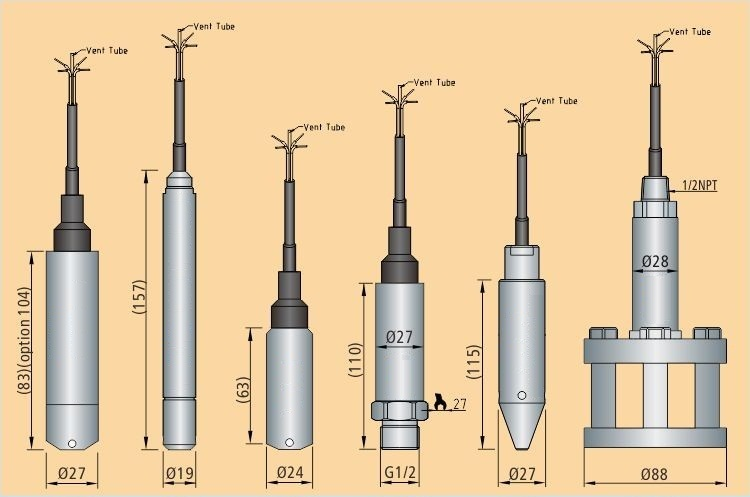

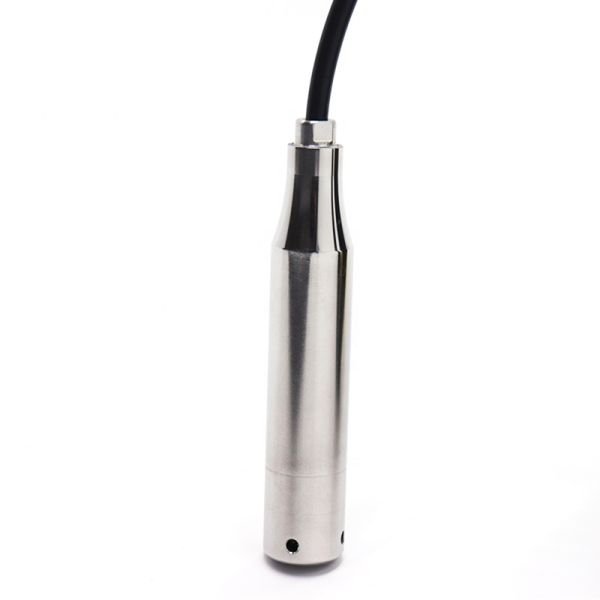

Product Show

Ordering Code

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

Send us inquiry message at the bottom of this page to get reply within 2 hours
